Description

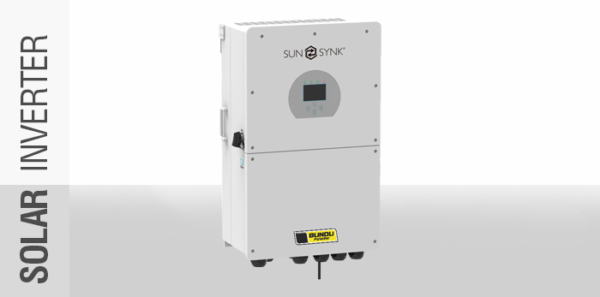

The Sunsynk 12kw three phase hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid and generator for residential or commercial purposes.

Sunsynk 12Kw Product Features

• Dual MPPT design
• 48 low-voltage battery
• Maximum charging /discharging current of 240A
• Support storing energy from diesel generator
• Compatible with most Lithium-ion batteries and Lead Acid batteries
• Mobile App for monitoring
• Anti-islanding protection
• Up to 16 units can be paralleled
• Essential and Non-Essential Loads outputs
• Push-in terminal for PV connection

Sunsynk 12Kw Specs:

Weight: 44 kg
Rated Power: 12,000 W
Min PPT Voltage: 160 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 160 V
DC Shutdown Voltage: 150 V
Max Input Voltage: 1,000 V
Max DC Power: 15,000 W
Max AC Power (5 Minutes): 13,200 W
Surge AC Power (1 Second): 24,000 W
Max DC Current: 37.5 A
Max DC Inputs: 3
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Efficiency: 99.9 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 5 years
